ANVIL Foundry™ 10.5 Gallon All-In-One Electric Brewing System W/ Pump

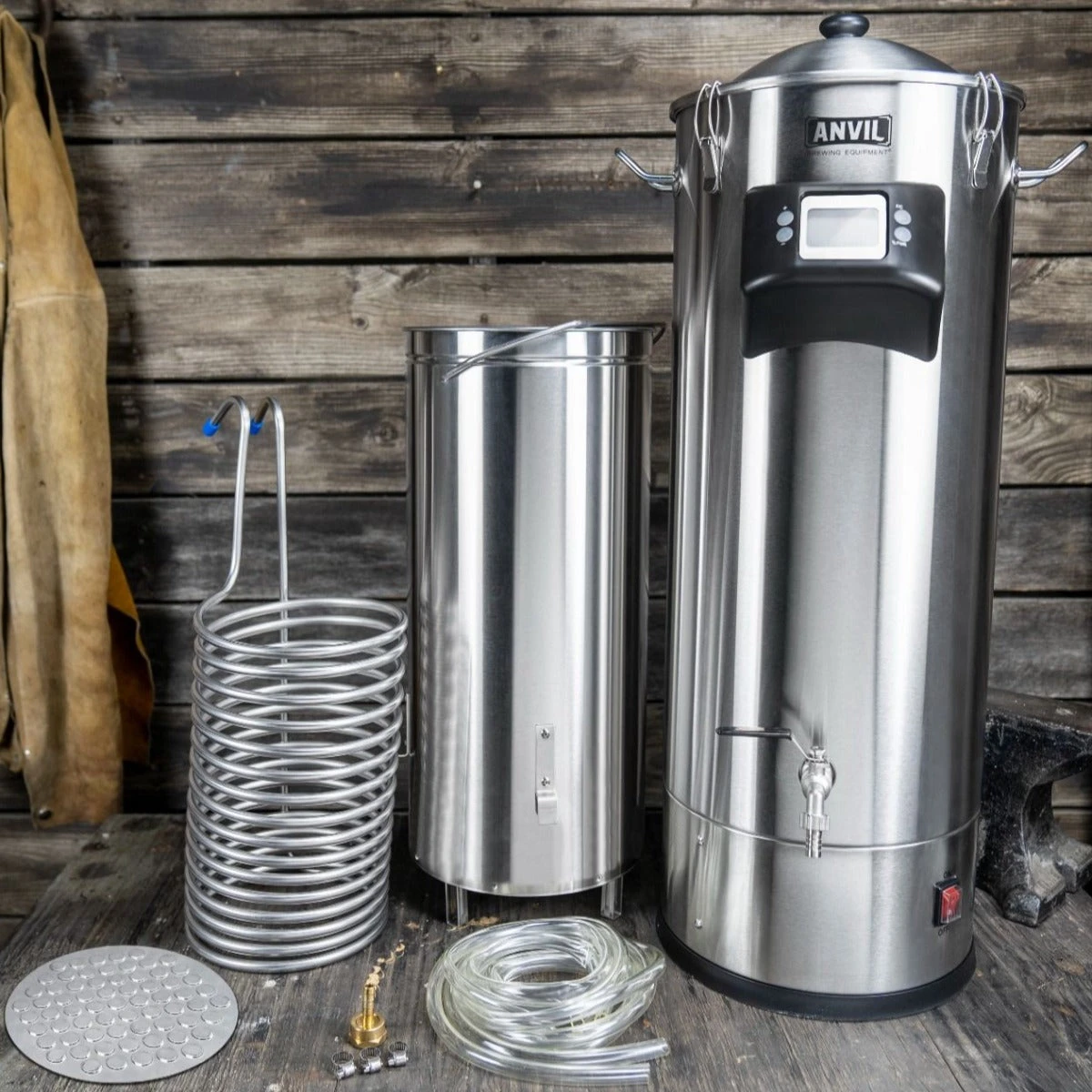

The ANVIL Foundry™ is the most versatile all-in-one brewing system available, at 10.5 gallons it is perfect for 5 – 6.5-gallon batches. From the triple element low watt density dual voltage heaters for blazing fast heating speeds to the unique grain basket, you won’t find a more powerful feature-rich product.

Included Recirculation Pump Kit:

The Recirculation Pump Kit for the Anvil Foundry Brewing System comes with everything you need to start recirculating! Recirculating during the mash can help increase efficiency, extracting more sugars from the grain. This kit includes a perforated disk that wort is run through, helping to clarify it. It also comes with a flow clamp and tubing to hook the system up to the Foundry. Get the most out of your Foundry system with the recirculation pump kit!

ANVIL Foundry™ Key Features:

• Recirculating Pump Kit included
• Switchable Between 120V 1600W, 13A and 240V 2800W, 12A for Faster Heating & Better Boils.

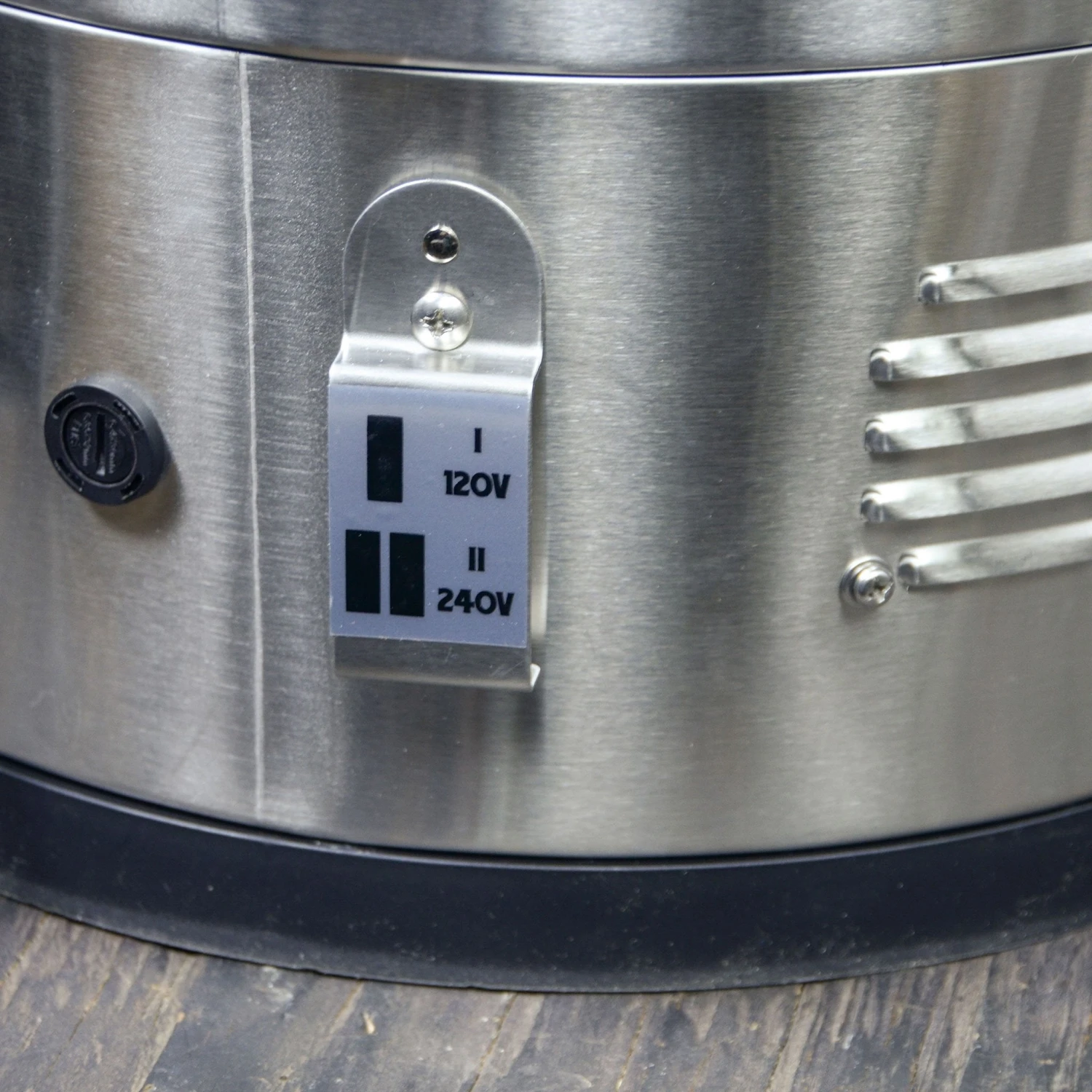

• New 240V/120V Adapter Cable – With this adapter you navigate to 240V for a faster brew day, or brew at the standard electric 120V by simply flipping the switch located on the back of the unit.The only all-in-one on that’s 240/120v
• New Water Deflecting Screen – The improved screen mount feature has an added gasket with internal water deflecting geometry on the inside to ensure water doesn’t reach the screen.

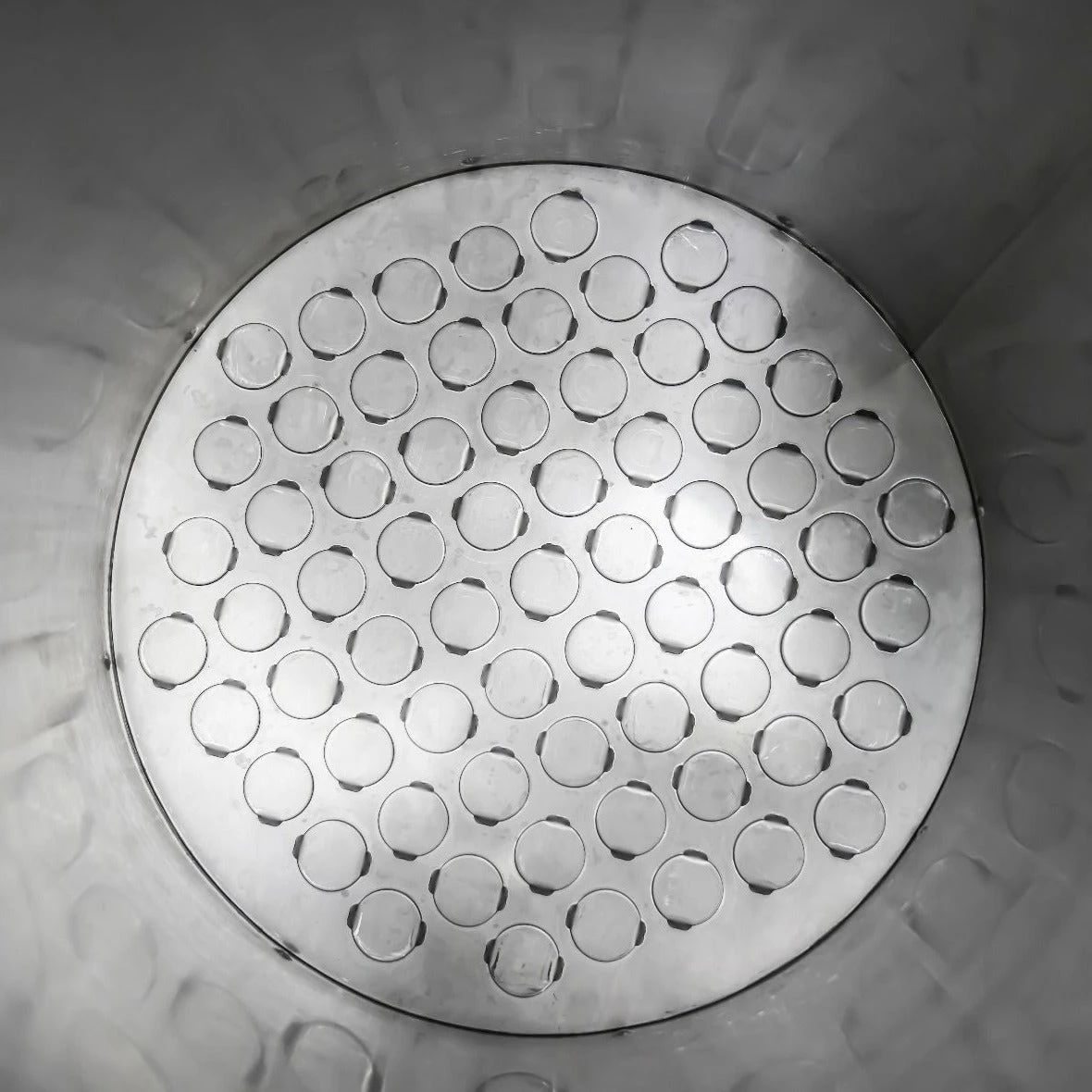

• Grain Basket Hosts 1.5” of Side Wall Perforations – They aren’t just back, they are improved! The grain basket’s side wall perforations drastically reduce the amount of stuck mashes from happening.
• Large Capacity Increases Efficiency and Grain Capacity.
• Double Wall Insulation Maintains Mash Temps and Increases Heating Speeds.
• Ultra-Low Watt Density, Triple Element Heaters – Won’t Scorch.
• Linear Digital Power Control and Solid-State Switching for Fine-Tuning your Boil.
• Turbo 500 Distillation Ready- refer to the manual for more info.
• Includes High Capacity Stainless Immersion Chiller with Hoses & Fittings.
• External Pump Won’t Plug and is Easy to Clean. No Need to Disassemble Entire Unit! Use for Other Pumping Needs too.

Due to Extended Supplier delays on certain products. Please allow 2-6 weeks for delivery, as this product ships directly from the manufacturer. BLICHMANN ENGINEERING & ANVIL BREWING ARE EXPERIENCING EXTENDED SUPPLIER DELAYS ON CERTAIN PRODUCTS. Express shipping options are not available.

Dimensions:

• Tank Diameter = 12.5 inches
• Distance Across the Handles = 17 inches
• Height of Base Unit = 29.75 inches
• Lid = 3.25 inches
• Total Height = 33 inches
• Spigot Height from Base = 7 inches
• Shipping Weight = 38 lbs

Wattage:

• 120V = 1600 watts
• 240V = 2800 watts

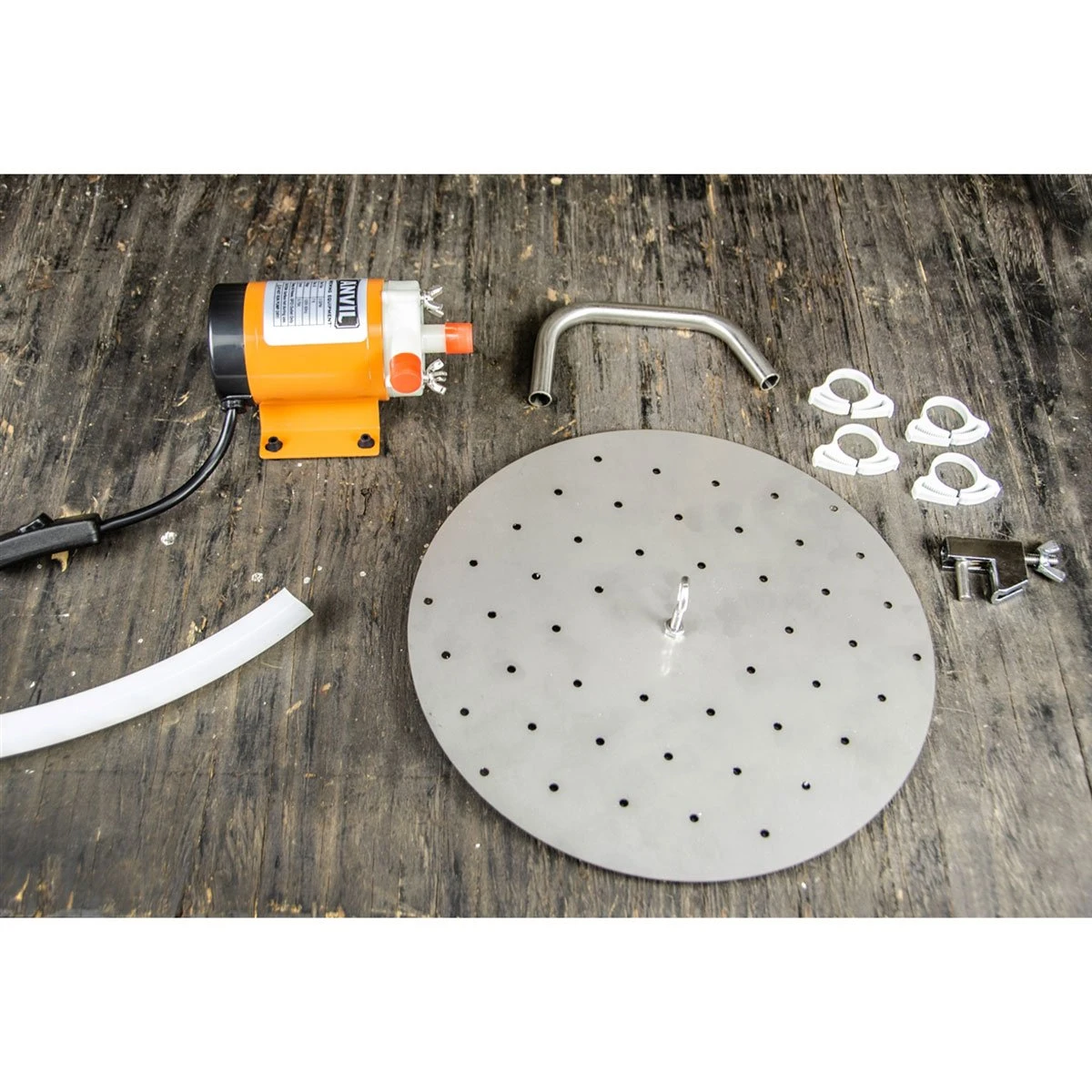

Recirculation Pump Kit Key Features:

• Anvil Recirculation Pump
• 4 ft. of 1/2 in. ID Silicone Hose
• 4 Hose Clamps
• Flow Clamp
• Stainless Return Tube
• Perforated Disc
• Eye Bolt & Nuts for Eye Bolt
