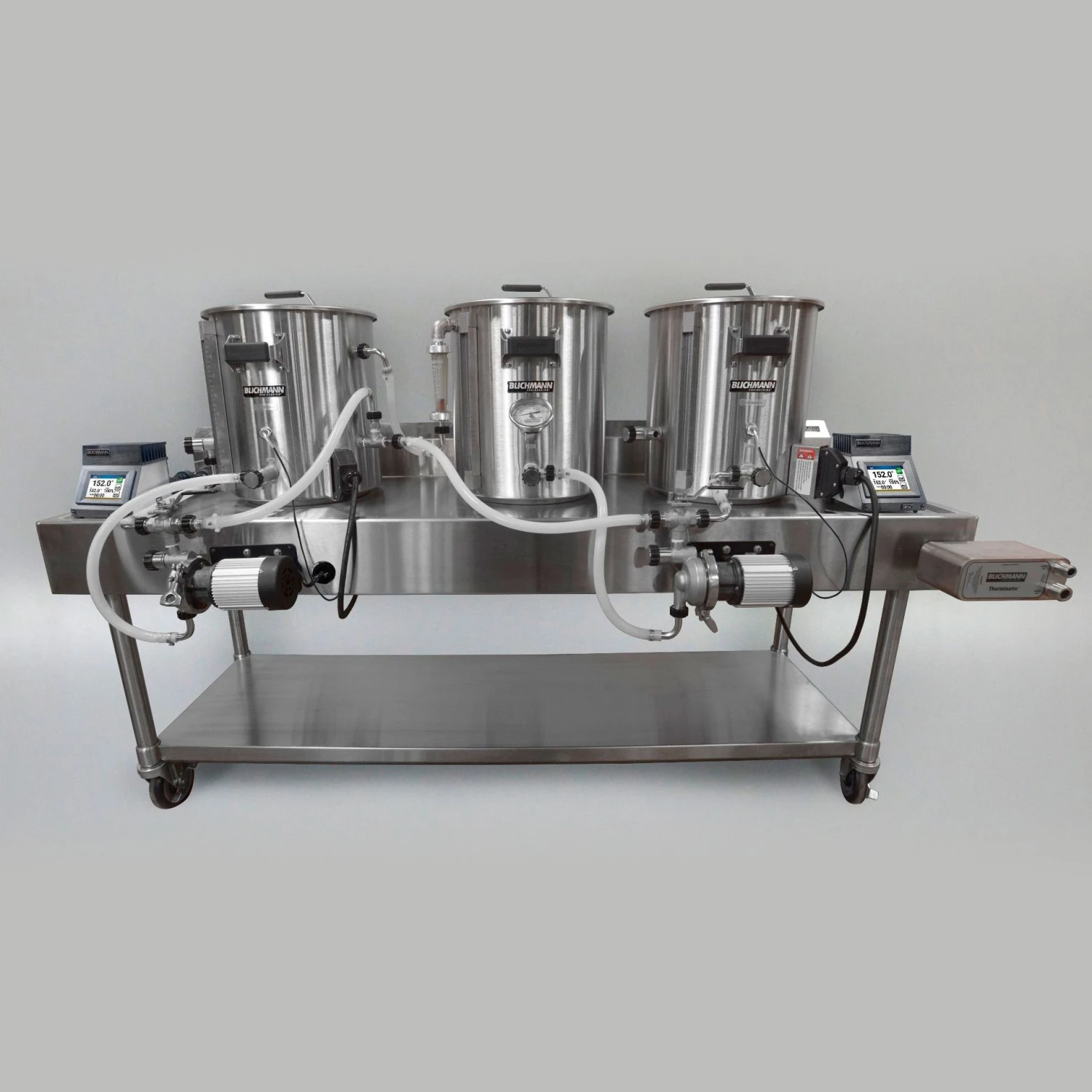

Blichmann Complete Gas RIMS Horizontal Brewing Systems (5 Gal- 1Bbl)

The Pro Pilot System is a true turnkey brewhouse including virtually everything you need to get up and running FAST!

Perfect for taprooms, pilot systems and neighborhood breweries. No fuss, no hassle, just pure pro brewing power!

Due to Extended Supplier delays on certain products. Please allow 2-6 weeks for delivery, as this product ships directly from the manufacturer. BLICHMANN ENGINEERING & ANVIL BREWING ARE EXPERIENCING EXTENDED SUPPLIER DELAYS ON CERTAIN PRODUCTS. Express shipping options not available.

Kettles

• Made in America.
• Single piece construction from US made stainless steel.
• Heavy gauge 304 stainless steel.
• Linear Flow Valve disassembles in seconds for cleaning, allows precise control of flow, and orients in any direction.
• Rivet free handles, rugged cool touch grips, oriented for easy carrying.
• Borosilicate glass level gauge.
• Diptube with rotating racking arm.
• Lifetime limited warranty on kettles.

Accessories

• Patented button louver false bottom.
• AutoSparge™ automatically sets the hot liquor flow rate and liquid level in your mash tun.
• Adjustable viewing angle thermometer.
• Whirlpool fitting in boil kettle.

HellFire™

• 140,000 BTU/hr at full power, 80,000 BTU/hr in efficiency mode (50% power setting).
• Patent pending clip-on heat shield.
• Infinitely adjustable kettle retaining bars accommodated kettles up to 19.75″ in diameter.
• Non-rusting, fume free heavy gauge stainless frame.

RipTide™ Brewing Pump

• Ultra quiet motor.
• Tri-Clamp disassembly for easy cleaning.
• Integral linear flow control valve.

BrewCommander™ Controller

• Intuitive Touchscreen Interface.
• Keypad Data Entry.
• Advanced Temperature Control Algorithm.
• Automated Step Mashing (up to 5 steps and 9 profiles).
• Boil Addition Timers (up to 7 additions and 9 profiles).
• Integral Pump Switch.
• Lab Grade Precision Thermometer – Superior to RTD’s.
• Customizable Settings – Basic and Advanced.
• Mash Step Ramp Rate Delay.
• HERMS / RIMS Offsets.
• Audible Alarms.
• Upgradable Firmware.
• Switchable Between Table and Wall Mounting.
• Modular – Connect Multiple Units!
• Optional Relay Modules allow control of a single kettle with multiple heating elements (up to 5) with one controller.
• Optional SparkBox™ Remote Ignition Module.
• Offered in Electric or Gas Versions.

Heavy Duty Custom Table

• 14 ga 304 stainless steel.
• Apron to mount accessories.
• Legs and lower shelf are stainless.
• Built-in receptacle boxes.
• Heavy duty casters for mobility.
• Adjustable height lower storage shelf.
• Made in USA.

Pilot System comes set up for propane.

Mash Tun

• BoilerMaker™
• AutoSparge™
• FalseBottom

Boil & Hot Liquor Tank Kettles

• BoilerMaker™ BK (Boil Kettle
• BoilerMaker™ HLT (Hot Liquor Tank)
• Whirlpool

Controller

• 2 – BrewCommander™ Controllers

Pump

• 2 – RipTide™ Brewing Pumps

Burners

• 3 – HellFire™ Burners

Table

• 72″ x 24″ Heavy Duty USA Made Brewing Table
• 25″ Height for ergonomic access to kettles
• *Table includes junction box, not a receptacle box.

Misc Accessories

• Hoses and Fittings
• Therminator™ Wort Chiller

Requires

• 1 – 120V 15A GFCI outlet
