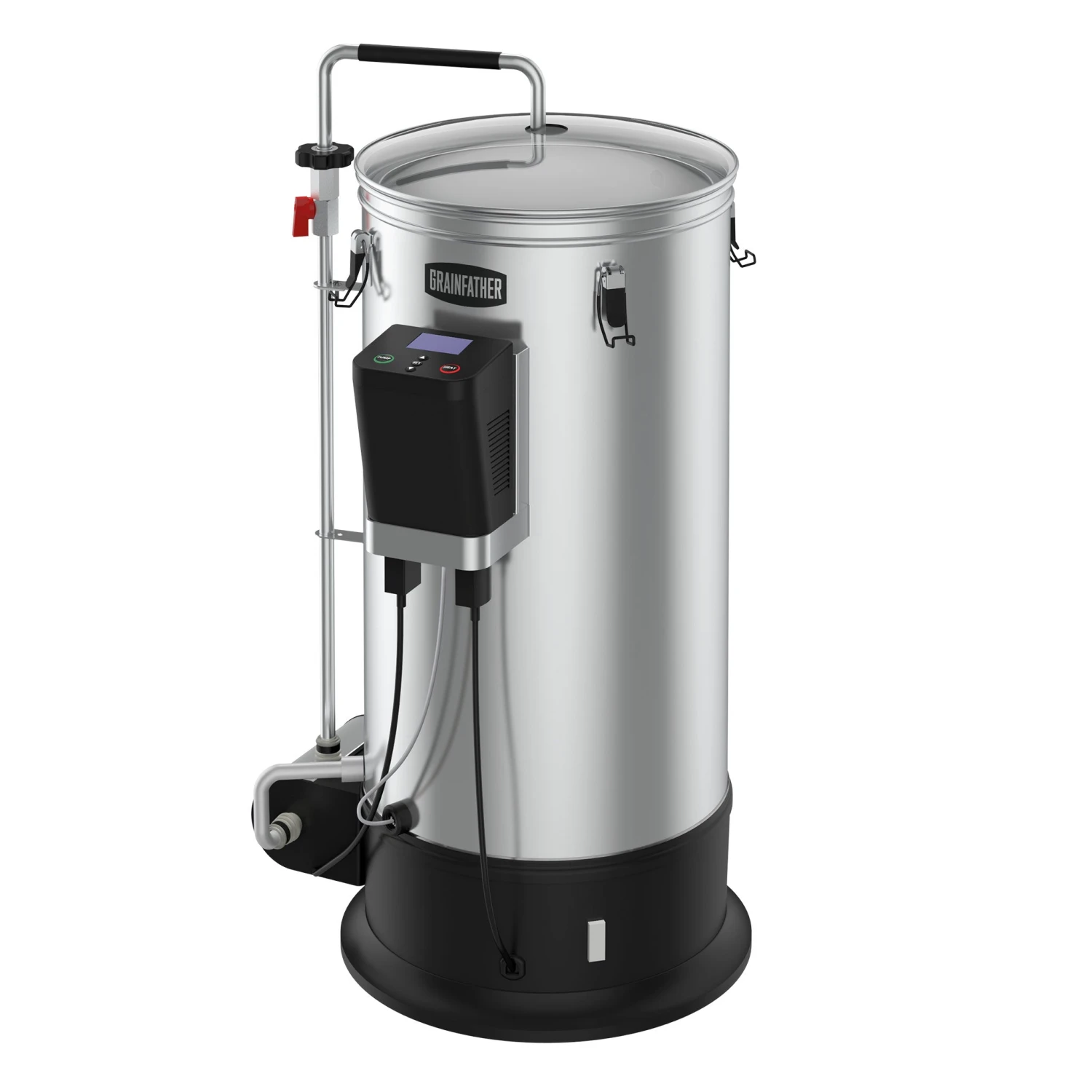

Grainfather G30 120v Version 3 All-in-One All-Grain Brewing System

New & Improved Grainfather G30³ 110V

The new and improved Grainfather G30 version 3 110-120v allows you to mash, sparge, boil, and cool, all in one fully electric, self-contained system. Now includes the Connect Controller. You can take direct control of the Grainfather with your iPhone or Android using Bluetooth. Use the Connect Control Box in conjunction with the Connect App for the ultimate brewing experience.

The Grainfather is an all-in-one All-Grain brewing system designed to declutter your brew cave and put everything you need in one compact package. No need to take your craft outside, with this fully electric system you are safe to brew indoors!

The Grainfather system is the perfect brewing companion for both new and experienced All-Grain brewers looking to streamline the brewday experience.

Manufacturer Instructional Booklet

What’s new on the G30 Version 3:

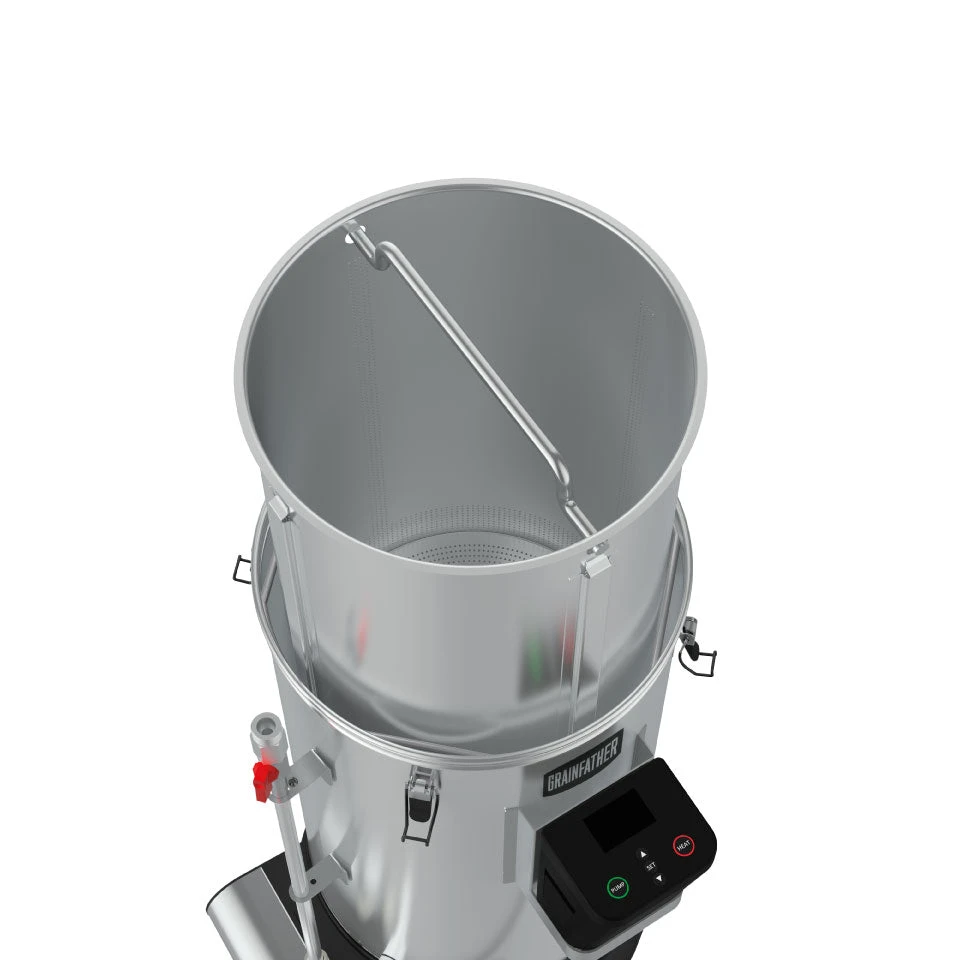

• Grain Basket Assembly:

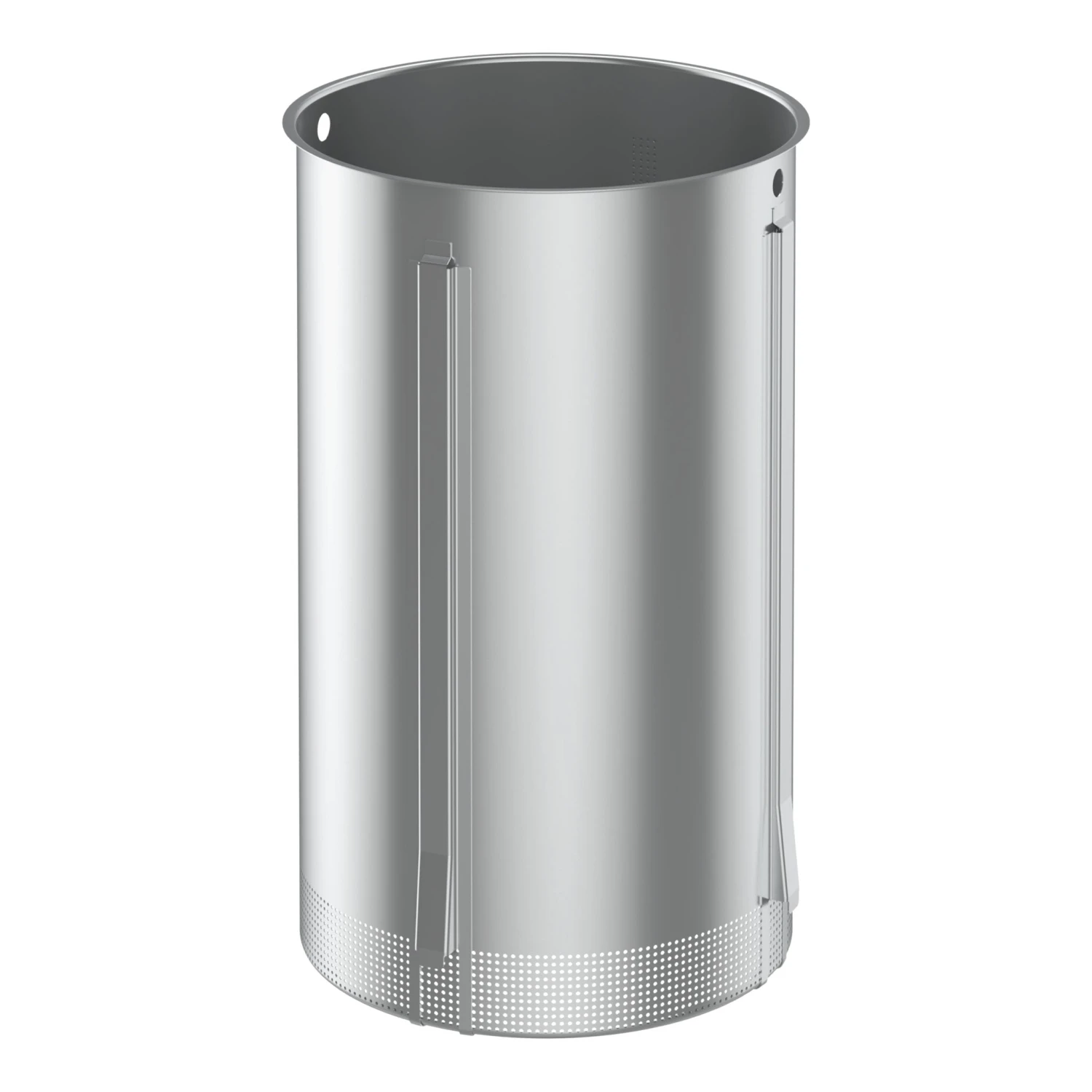

  The newly redesigned Perforated Edge Grain Basket on the G30³ features side wall perforations to improve wort flow and to prevent a stuck mash.

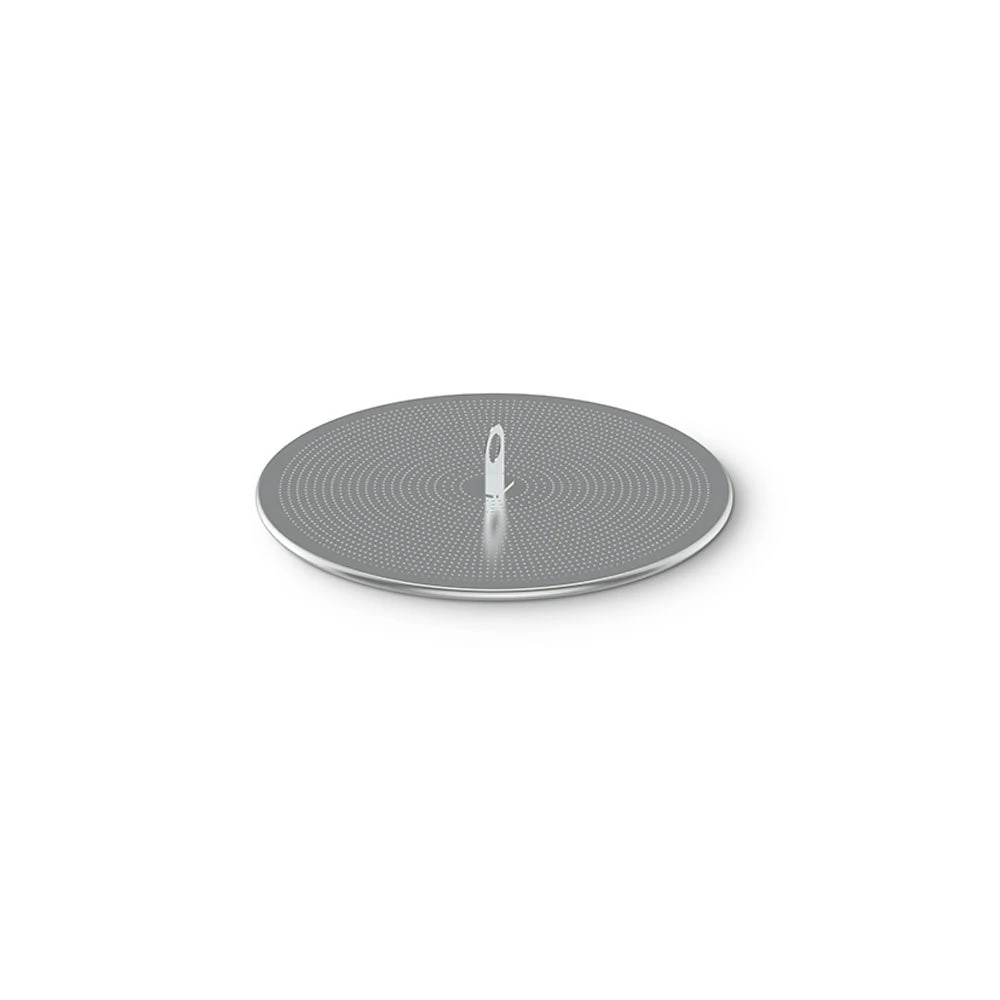

  In addition to the redesigned grain basket, the new Rolled Edge Mash Plate filters the wort efficiently without warping. The new rolled edges mean that there is no need for silicone seals, making the plates much easier to install, remove, and clean.
  The new grain basket and mash plate design means that there is no need for overflow pipework or a top plate, allowing for a hassle-free brew day.
• Auto Reset Switch:
  Lifting and reaching underneath the boiler to reset your electric homebrewing system is now a thing of the past! The new auto reset switch avoids needing a physical, manual switch to reset the system; ensuring homebrewers can quickly and easily resume their brew day if an unexpected reset is required.

Same Great Grainfather features:

• Full Five Gallon Batch Capacity
• 110 – 120 volt, 20 amp
• 304-grade stainless steel superior body, with 8 US Gal (30 L) capacity
• Expandable grain basket to suit grain bills up to 19.8 lbs (9kg)
• A robust magnetic drive pump (6 watt, 1800 RPM) and wort recirculation pipe with insulated handle, ensuring consistent temperatures throughout the mash and maximizing efficiencies
• Pump filter to keep hops and stray grain in the boiler, and your wort clear and bright

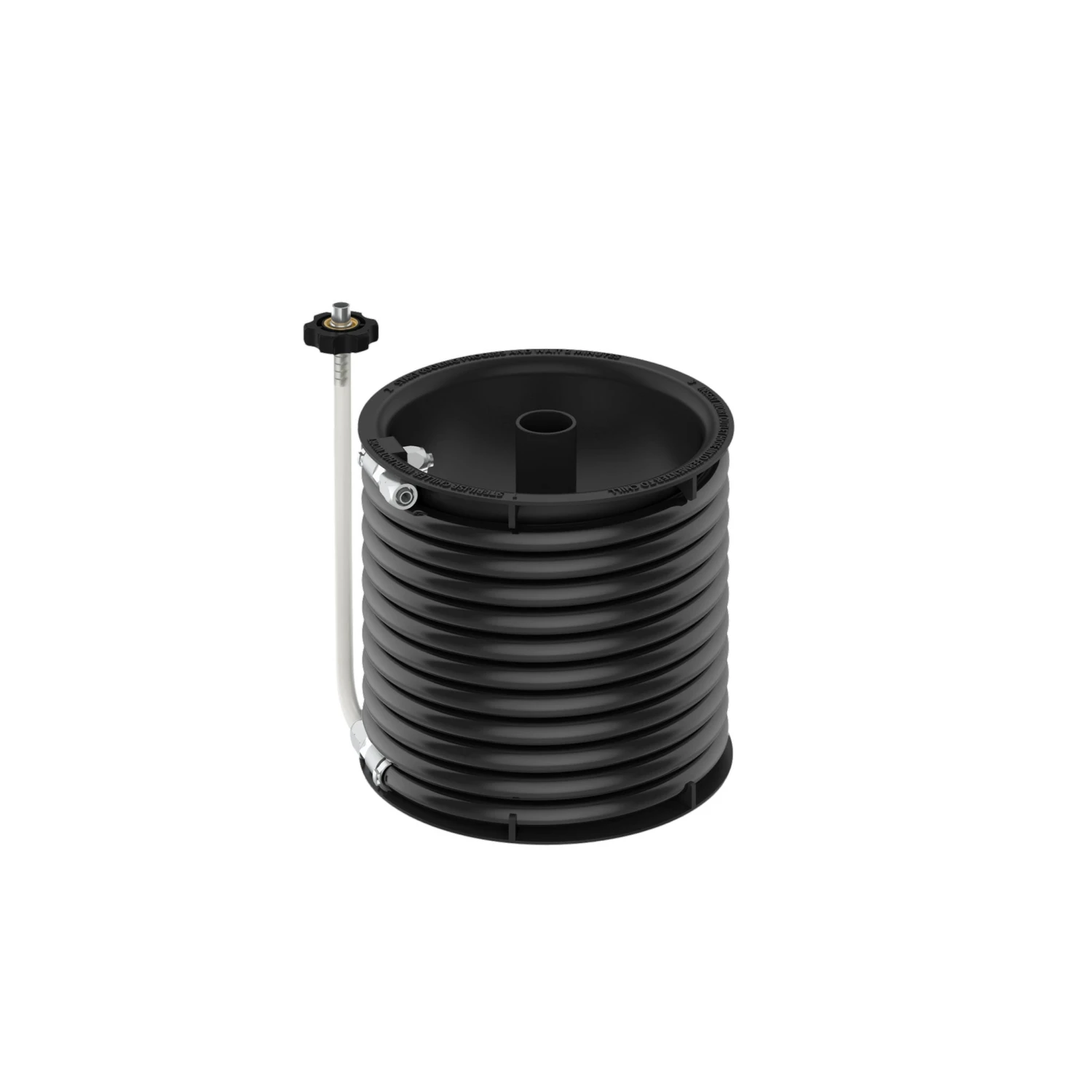

• Counterflow Wort Chiller with copper inner coil, cooling your wort to <68°F within 20mins
• Toughened plastic control box and display screen, giving you total temperature and pump control. Dial in the exact temperature for your mash, allowing both step mashing and single temperature mashing with very fast ramp up between steps
• Dual heating element (1600 watt and 600-watt elements) allowing you to switch between heating quickly to a vigorous boil and maintaining a stable temperature
• Tempered glass lid for maximum durability, heating efficiencies and visibility during your brewday
• Dimensions: 29″ H x 19.1″ L x 17.2″ W

Interested in the Grainfather G30 220v version?

Connect Controller Details:

Automation without removing the fun of brewing, be as involved as you want to be! More automation means you can multitask or simply relax while brewing and then be alerted when to return for your next step. Use the Connect Control Box in conjunction with the Connect App for the ultimate brewing experience.

Connect Controller Instructions

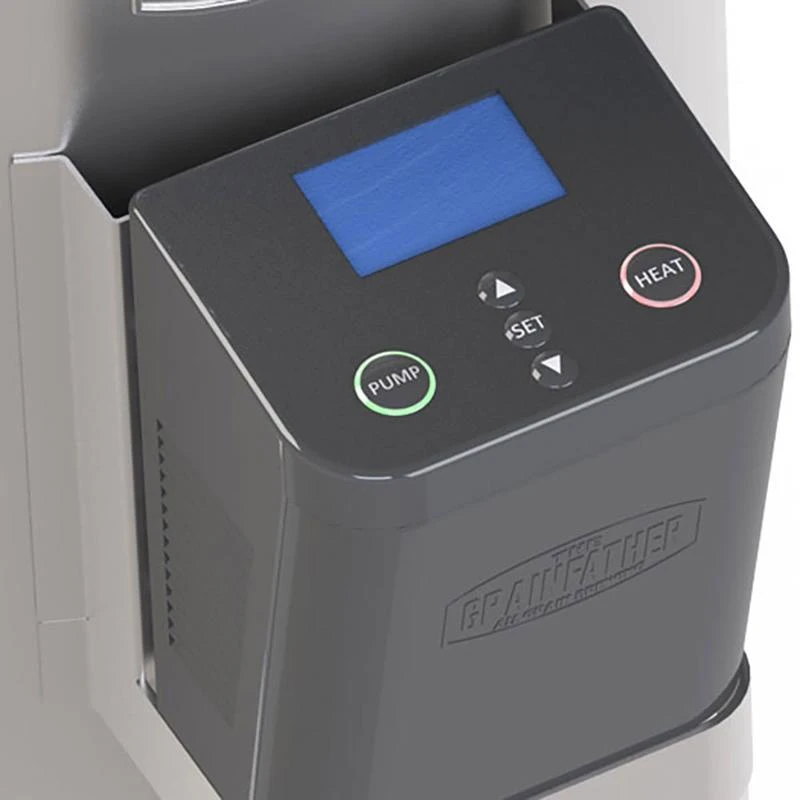

Control Box Features:

• Bluetooth connection to your mobile device so it can be controlled remotely
• PID algorithm works in conjunction with a triac for more stable heating and so you can control power output
• Programmable step mashing
• Delayed heating – fill your Grainfather with water the night before and wake up to your water at strike temperature ready for brewing straight away
• Change between Celsius and Fahrenheit easily
• Waterproof graphic display
• Use in manual mode or with app

App Features:

• Grainfather Grain Kit recipes provided in app
• Import Beer XML files
• Set your own boil temperature (for different altitudes)
• Change between Celsius and Fahrenheit easily
• Grainfather calculators provided in app

NOTE: Required Specifications for the App are:

iPhone/iPad

• Hardware: iPhone 4S or higher
• Software: iOS8 or higher??. Must have Bluetooth 4.0 or higher

Android

• Hardware: Android 4.3 (API Level 18) or higher
• Software: Must have Bluetooth Low Energy (LE)/Bluetooth Smart
